Generator set 30kw 50kw 100kw Power generation system 200kw Diesel generator electric machinery
| | |

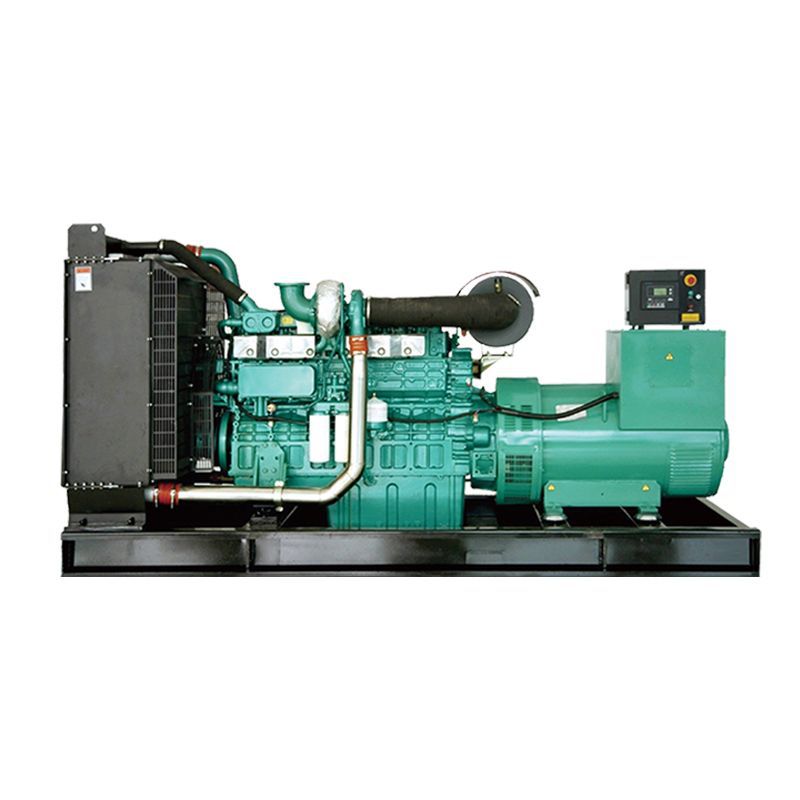

| | Standard diesel generator set |
| | |
| | |
| | AC 3/Three Phase Output Type |
Core parameters and technical characteristics
Basic performance
Rated power: 100kW (125kVA), standby power is usually 105-113kW (132-140kVA).
Voltage/Frequency: 380V/220V three-phase four wire system, 50Hz standard power frequency, supports Y-shaped wiring.
Fuel economy:
Diesel fuel consumption: 202~240g/kW · h (Yuchai models have a low of 202g/kW · h, leading the industry).
Fuel tank capacity: 150-200L, operate continuously at full load for 8-12 hours.
Dynamical system
Engine:
6-cylinder inline design, turbocharged intercooled intake, displacement 4.5-6.75L (such as Yuchai YC4A155-D30, Weichai WP4.1D100E200).
Electric control high-pressure common rail technology (Yuchai, Weichai), steady-state speed regulation rate ≤± 0.5%, transient frequency fluctuation ≤± 2%.
Cooling method: Closed water circulation cooling, suitable for high temperature environments of 40 ℃~50 ℃.
Silence and Structure
Noise control:
Open frame noise: 95dB (at a distance of 7 meters) 3.
Silent enclosure: Multi layer sound insulation design (steel plate+sound-absorbing cotton), reducing noise to 65-78dB, in compliance with urban environmental standards (such as ISO3744).
Protection level: IP22~IP55 (dustproof and splash proof), box size approximately 2700 × 1100 × 1560mm, weight 1200~1650kg.
Intelligent control
AVR automatic voltage regulation: voltage fluctuation rate ≤ ± 0.5%, harmonic distortion rate<3%, suitable for precision equipment.
Fully automatic function: supports ATS mains power switching (starts within 3 seconds of power failure), cloud remote monitoring (high-end models)
